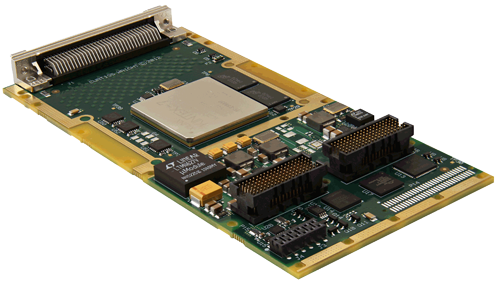

Curtiss-Wright XF07-523 Xilinx Kintex-7 XMC with Digital I/O
发布者: Curtiss-Wright
The Curtiss-Wright XF07-523 is a rugged Kintex-7 FPGA based XMC with digital IO. Multiple digital data IO port are provided for front panel and XMC P6/PMC P4 IO. These IO ports are directly coupled to a Kintex-7 K325T FPGA for high-speed data IO. The XF07-523 Kintex-7 FPGA XMC is available in air and conduction-cooled build variants. The combination of direct high-speed I/O ports and next generation FPGA processing makes the XF07-523 ideal for demanding applications including radar, imaging and test equipment across commercial and defense market spaces.
主要特性与优势
- Xilinx Kintex-7 K325T (-2) FPGA on XMC (PCIe) form factor
- 32-differential digital IO pairs (LVDS, etc) front panel (air-cooled only)
- 32-differential digital IO pairs (LVDS, etc) PMC P4 connector or 20 differential pairs + 38 single ended digital IO XMC P6
- Two banks of 128M x 16bit DDR3 SDRAM
- 1Gbit FLASH for FPGA configuration
- Air-cooled (AC L0, AC L100) or Conduction-cooled (CC L200)
- VxWorks and Linux support
包裝內容物含配件
- FusionXF Software/HDL
- XF07-523 XMC Module with Kintex-7 FPGA
