Debugging Dom-0/Dom-U Kernel

  1. Boot Xen and Dom-0.
    For details on how to boot Xen and Dom-0, refer UG1144 - PetaLinux Tools Documentation: Reference Guide.
  2. Enable Xen awareness by enabling OS aware debug for Xen symbol file. Symbol files are added to a process context to enable source level debugging.
    For details on how to enable Xen awareness, refer Enabling Xen Awareness.
  3. Debug Dom-0 kernel.
    1. Enable OS awareness on the Linux symbol file in the Debug view for Dom-0 VCPU context. For details on OS aware debug, refer OS Aware Debugging.

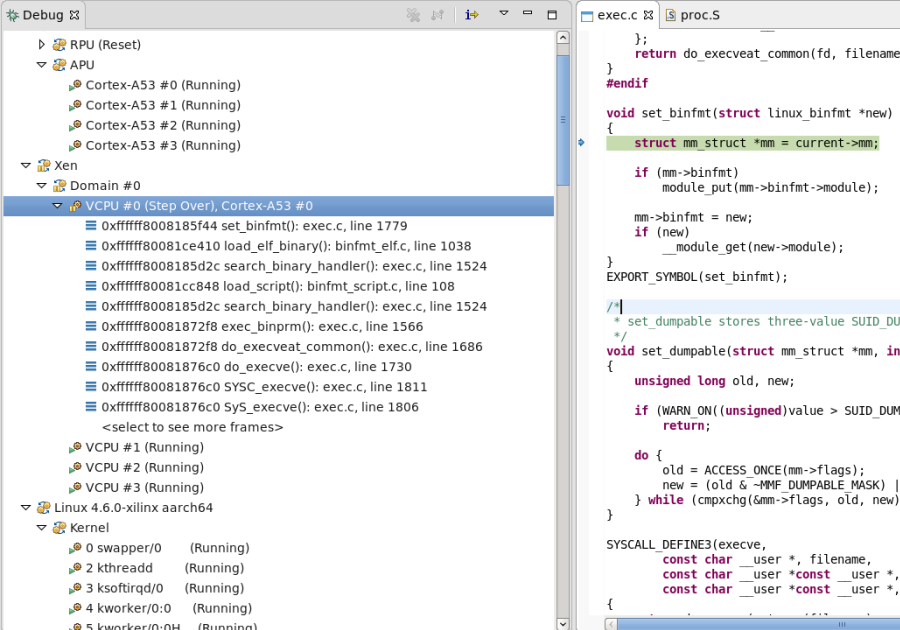

    2. Suspend the Dom-0 VCPU#0 core. You can now insert breakpoints, step in, step out, watch variables, stack trace or perform other source level debugging tasks.


  4. Debug Dom-U Kernel.
    1. Copy the guest Linux images to Dom-0 file system.
    2. Create a Dom-U guest.
    3. Enable OS awareness on the Linux symbol file in the Debug view for Dom-U VCPU context. For details on OS aware debug, refer OS Aware Debugging.
    4. Suspend the Dom-U VCPU#0 core. You can now insert breakpoints, step in, step out, watch variables, stack trace or perform other source level debugging tasks.
