Xilinx Virtex UltraScale+ FPGA VCU1525 Acceleration Development Kit
by: Xilinx, Inc
The Virtex UltraScale+ FPGA Acceleration Development Kit is an excellent starting point for hyperscale application developers.
Overview
Important Notice:
This development kit has been discontinued per PDN advisory XCN18025 and is no longer offered for sale. The solutions targeted for this product will not be updated moving forward with limited support available from Xilinx.
Product Description
Ideal for data center application developers wanting to leverage the advanced capabilities of Virtex® UltraScale+™ FPGAs. This PCIe® development board is accessible in the cloud and on-premise with the frameworks, libraries, drivers and development tools to support easy application programming with OpenCL™, C, C++ and RTL through the Xilinx SDAccel™ Development Environment.
Key Features & Benefits
- Specialized reprogrammable hardware for computationally intensive applications, specifically targeting the fast-growing markets for live video transcoding, data analytics, genomics, and machine learning
- Dual slot PCIe full-length, full height form-factor compliant
- Delivers 10-100x performance acceleration over server CPUs with a board designed to support up to 225W
- SDAccel platform reference design for custom board support
- Supported with SDAccel Development Environment for OpenCL, C, C++ and RTL
- VU9P Virtex UltraScale+ FPGA
- 21 TOPs (8-bit integer precision)
- 346Mb on chip memory
- 64GB on board DDR4 DIMM memory
Featured Xilinx Devices
Featuring the XCVU9P-L2FSGD2104E FPGA
| System Logic Cells (K) | 2,586 |
|---|---|
| DSP Slices | 6,840 |
| Memory (Mb) | 345.9 |
| GTY 32.75Gb/s Transceivers | 76 |
| I/O | 676 |
Product Information
Board Features

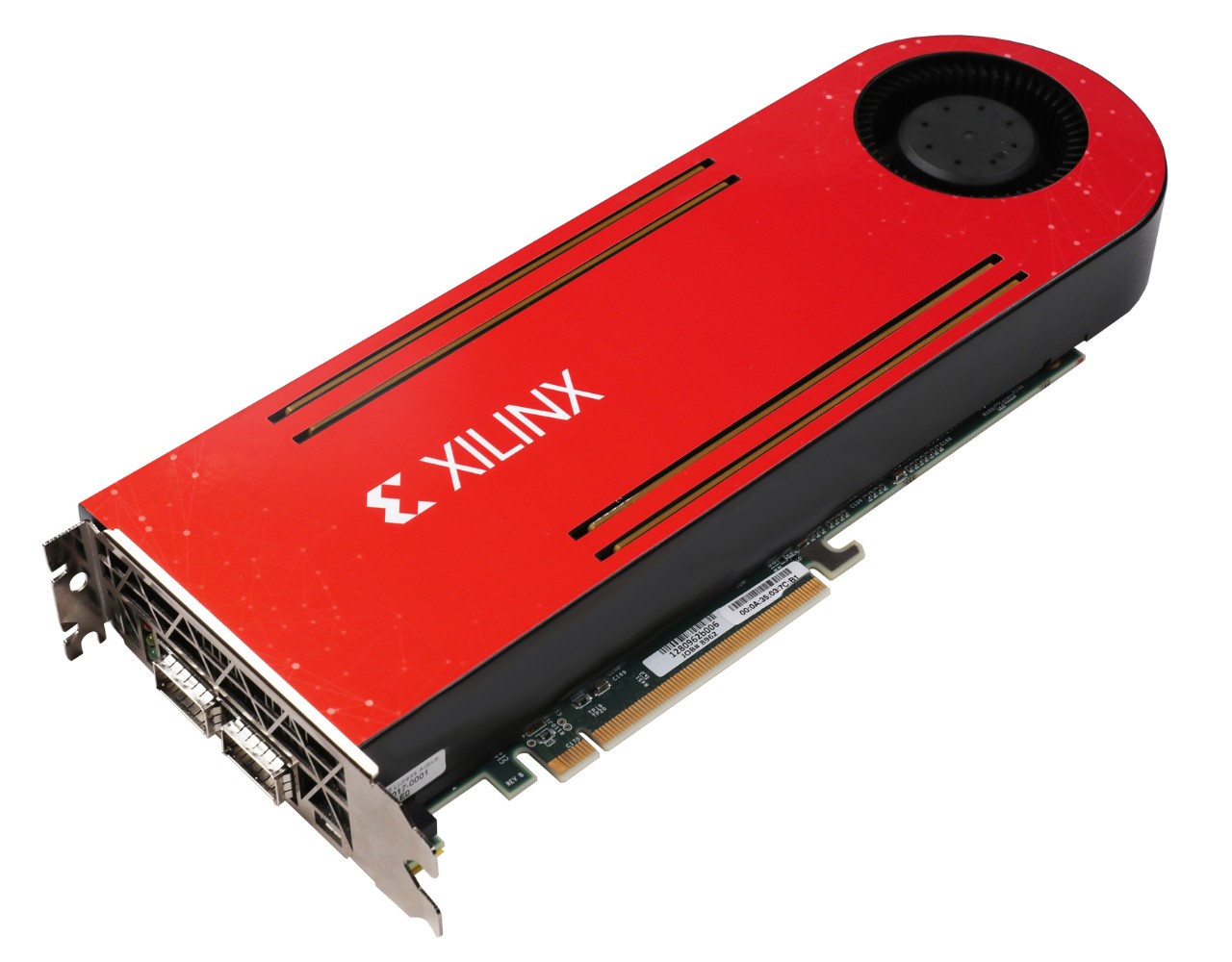

Featuring the VCU1525 Board
Memory
- 4 - 16GB DDR4 DIMMs
Power & Thermal
- Active Cooling
- 225W Max Dynamic Power Sourcing
- Up to 75W max from PCIe Edge Connector
- Additional 150 W max supplied from PCIe Aux Power Connector
Configuration
- FPGA Configuration via JTAG thru Micro USB Port
- QSPI Configuration flash memory
Communication & Networking
- Two QSFP28 100G Interfaces
- PCIe Gen3 x 16 or Gen4 x8 via Edge Connector
Featured Xilinx Devices
Featuring the XCVU9P-L2FSGD2104E FPGA
| System Logic Cells (K) | 2,586 |
|---|---|
| DSP Slices | 6,840 |
| Memory (Mb) | 345.9 |
| GTY 32.75Gb/s Transceivers | 76 |
| I/O | 676 |
What's Inside
VCU1525 board featuring the XCVU9P-L2FSGD2104E
Vivado® Design Suite: Design Edition Voucher Code
Node locked & Device-locked to the XCVU9P FPGA, with 1 year of updates
USB Micro Cable
Resources
Design Tools
| Name | Description | License Type |
|---|---|---|
| Vivado Design Suite Design Edition | The Xilinx Vivado® Design Suite is a revolutionary IP and System Centric design environment built from the ground up to accelerate the design for FPGAs and SoCs. | Node locked and device-locked to the XCVU9P FPGA, with one year of updates. Supports Dynamic Function eXchange |
| SDAccel Development Environment | SDAccel is a development environment for OpenCL applications targeting PCIe®-based Xilinx FPGA accelerator cards. This environment enables concurrent programming of the system processor and the FPGA logic without the need for RTL design experience. | Node locked and device-locked to the XCVU9P FPGA, with one year of updates. |
| Dynamic Function eXchange | Dynamic Function eXchange is the ability to dynamically modify blocks of logic by downloading partial bit files while the remaining logic continues to operate without interruption. Xilinx Dynamic Function eXchange technology allows designers to change functionality of the accelerator board on the fly, eliminating the need to fully reconfigure and re-establish PCIe links while reloading. | Node locked and device-locked to the XCVU9P FPGA, with one year of updates. |
Intellectual Property
| Name | Description | License Type |
|---|---|---|
| DDR4 SDRAM Controller | DDR4 SDRAM controller is a free IP core in the Vivado IP Catalog. | No-Charge IP |
| DMA for PCI Express (PCIe) Subsystem | The Xilinx® LogiCORE™ DMA for PCI Express (PCIe) implements a high performance, configurable Scatter Gather DMA for use with the PCI Express 3.x integrated block. The IP provides an optional AXI4 or AXI4-Stream user interface. | No-charge IP |
| Xilinx SmartConnect Technology | The Xilinx SmartConnect Technology enables unprecedented levels of performance for the UltraScale+™ device portfolio, by solving the system interconnect bottlenecks on high density, multi-million system logic cell designs. | No-charge IP |
| SDAccel Platform Reference Design for Custom Board Support | SDAccel projects are compiled against a target platform. The SDAccel Platform Reference Design is the combination of board and hardware/software infrastructure components on which the kernels of an OpenCL application are executed. This reference design is intended to be used as a starting point to help platform developers add SDAccel support for their custom PCIe boards. | No-charge IP |
Default
Default
Title
Date
Set Up the VCU1525 Accelerator Card
2018.3
Download the Xilinx Runtime and Deployment Shell.
1.
Download the Xilinx Runtime
The Xilinx runtime (XRT) is a low level communication layer (APIs and drivers) between the host and the card.
IMPORTANT: Please enter the following command before installing the XRT:
RedHat:
$ sudo yum-config-manager --enable rhel-7-server-optional-rpms
$ sudo yum install -y https://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
CentOS:
$ sudo yum install epel-release
2.
Download the Deployment Shell
The deployment shell is the communication layer physically implemented and flashed into the card.
Note:
The VCU1525 will leverage this shell for application development, though the card itself is for development only and was not qualified for volume deployment as part of an end system.
Develop Your Own VCU1525 Accelerated Applications
If you are a developer, download these additional files.
3.
Download the Development Shell
The shell interface for development is required if you are building your own applications.
4.
Download SDAccel Design Environment
The Xilinx SDAccel IDE provides a framework for developing accelerated applications.
