Select the application project in the Project Navigator or C/C++
Projects view and right-click Create Boot Image. Alternately,

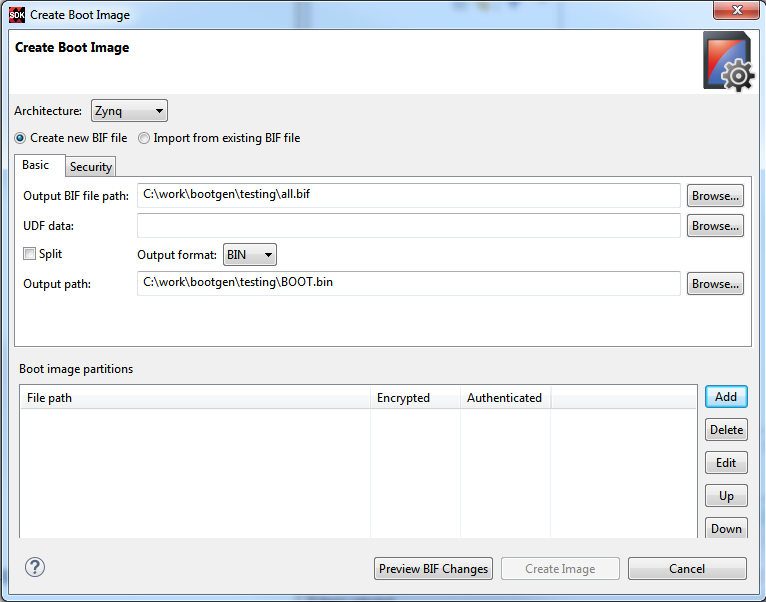

click Xilinx Tools > Create Boot Image. The Create Zynq-7000
AP SoC Boot Image dialog box appears with default values preselected
from the context of the selected C project. Note the following:
When you run Create Boot Image the first time for an application,
the dialog box is pre-populated with paths to the selected project ELF
file, the FSBL ELF file, and the bitstream for the selected hardware
(if it exists in hardware project).
If a boot image has previously run for the application, the dialog
box is pre-populated with previously used values as per the configuration
file present in the project that is in the bif folder.
You can now create boot image for Zynq® and Zynq® UltraScale+™ MPSoC architectures.
You can add new partitions to the boot image by clicking Add and specifying
the location of the required data files, if any.
You can now add some information, like version/other info to the boot image. This data will be a part of the Boot header.
The specified data should be a maximum of 76 bytes (for Zynq) and 40 bytes (Zynq UltraScale+ MPSoC).
The specified data will take an offset of 0x4c (for Zynq) and 0x70 (for Zynq UltraScale+ MPSoC) in the bootimage.
Specify offset, alignment, and allocation values for partitions in
the boot image, if applicable.
The output file path is set to the bif folder under the selected application
project by default.
