Creating the System Performance Modeling Project

  1. Select File > New > SPM Project to start the System Performance Modeling application.
  2. Click Finish.
  3. The SPM Launcher opens.

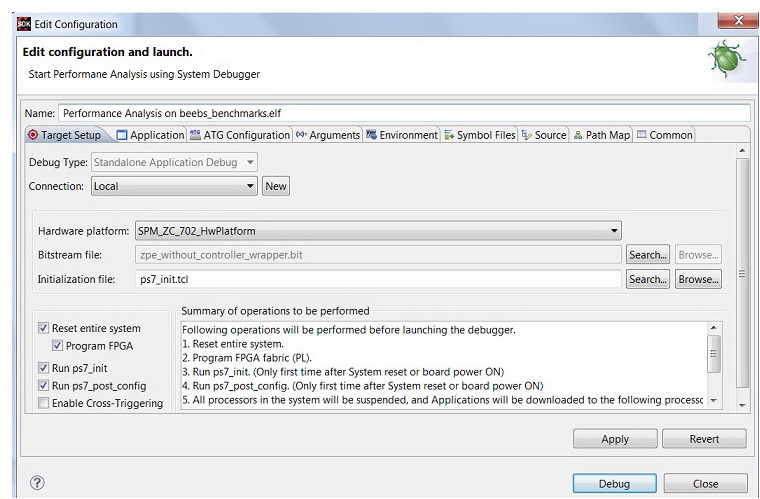

  4. The following figure shows the Edit Configuration dialog box for a local connection. To start the SPM with the default traffic configuration, click Debug. The default traffic section is explained in Selecting an ATG Traffic Configuration
  5. It first programs the FPGA and then starts the SPM.
