Creating a Boot Image

You can create a boot image for for both Zynq® or Zynq® UltraScale+ ™ MPSoC architectures by performing the following instructions:

  1. Make sure that the FSBL project and any C application project are created in the SDK workspace and built so that corresponding ELF files are available.
  2. Select an architecture for which you plan to create a boot image from the Architecture drop down menu. Currently, boot image creation for Zynq and Zynq UltraScale+ MPSoC architectures is supported.
  3. Select Create a new BIF file.
  4. Specify the path for creating a BIF file in Output BIF file path . The Output path is automatically populated with same path as that of BIF file path.
  5. Click the Security tab if you need secure images. For more details on the settings available on the
  6. Select Use Authentication to enable authentication and select PPK, SPK PSK and SSK values.
  7. Click the Encryption tab.
  8. Select Use Encryption to enable encryption and select the key file and key source.
    Note: SPK signature is not required here, as you will provide the secret key PSK.


  9. Add the partitions one at a time, starting from the bootloader. For details on settings available on the Add partition page, refer Adding a Partition
    1. Select the Partition type as “bootloader”.
    2. Select the FSBL “zynq_fsbl.elf” path.
    3. Select the authentication as rsa and encryption as aes.
  10. Click OK.
    Note: Presign is not required when the secret key SSK is specified.
  11. Click OK.

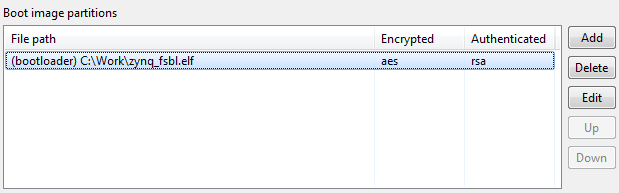

    Notice that the list in Boot Image Partitions is populated.



  12. Add the second partition. For this example, you will add a C application.
    1. Select the Partition type as datafile.
    2. Select the application zynq_hello.elf path.
    3. Select the authentication as rsa and encryption as aes.
  13. Click OK.

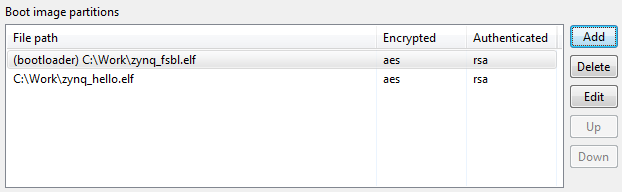

    Notice that the list in Boot Image Partitions is updated with the second partition.



  14. Click Create Image to create the final boot image output.bin.
