Target Connections View

To view all the cable-types and devices, connected to the host, using the Target Connections view, do the following:

  1. Select Window > Show View > Xilinx > Target Connections to launch the Target Connections view.

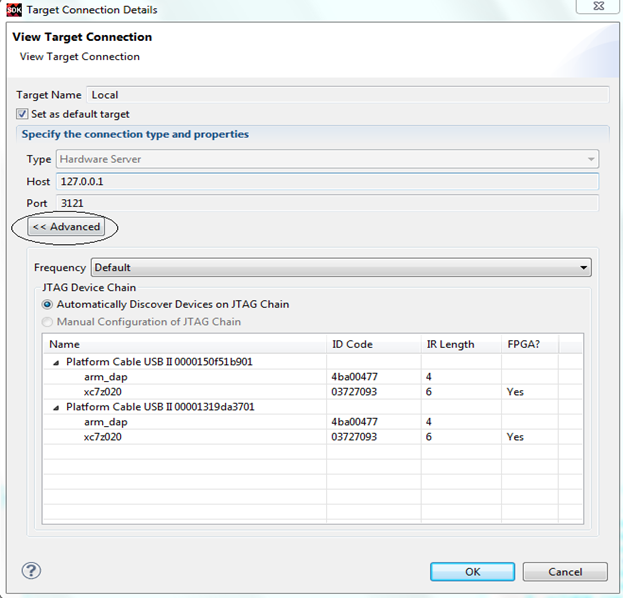

  2. Double-click the target connection. The Target Connection Details dialog box appears.
  3. Click Advanced. A list of active cable-types and devices appear in the Target Connection Details dialog box.
