Configuring a Board Support Package (External Tools)

To configure an existing Board Support Package (BSP) project created for use with external tools, do the following:

  1. In the SDK Project Explorer or C/C++ Navigator pane, right-click the BSP you want to configure.

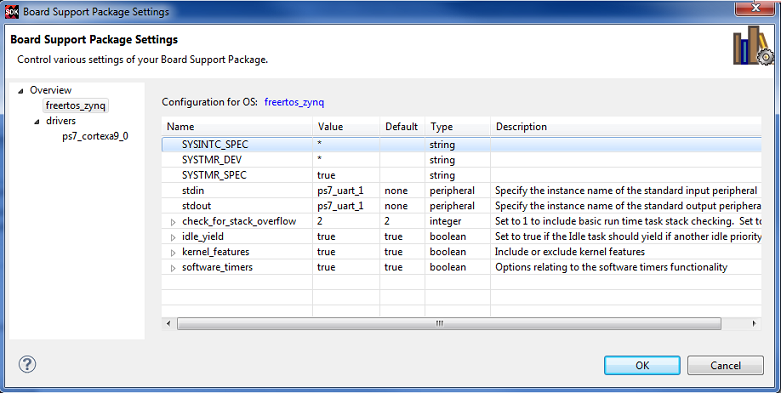

  2. Select Board Support Package Settings. The Board Support Package Settings dialog box opens for configuring a BSP for external tools. Note: You can also open this dialog box by selecting Xilinx Tools > Board Support Package Settings.
  3. In the Board Support Package Settings dialog box, configure parameters for your OS.
  4. When you finish with all the settings you want to make, click OK to commit your changes.
  5. If the Build Automatically option is selected in the Project menu, your BSP is regenerated with your new settings applied.
